Photovoltaic Solar Power
Atlantis Brief
Photovoltaic solar electricity is a clean way to instantly generate electricity, perfect for small scale or large scale electrical installations

  • In the decade between 2009 and 2019, global installed PV capacity increased over thirtyfold
  • Despite rapid growth, estimates show less than 2% of the world’s electricity (approx. 0.5% of global energy) is generated from Solar PV
  • Over half of all global PV power generation takes place in the Asia Pacific region
  • Solar PV capacity is expected to grow fourteen fold by 2050
  • The cost of Solar PV has dropped by about 77% over the last 10 years. It is now one of the cheapest sources of energy.

Photovoltaic does need to use batteries for storage so usually best to use energy as soon as possible. Plus there are many chemicals used in the creation of photovoltaic cells, these need to be managed so as not to create any toxic pollution.

Indepth Study
An Introduction
Photovoltaic (PV) solar energy is obtained by converting sunlight into electricity using a technology based on the photoelectric effect. It is a type of clean energy that can be produced in installations ranging from small generators for self-consumption to large photovoltaic plants.


History and Trends
The first conventional photovoltaic cells were produced in the late 1950s, and throughout the 1960s were principally used to provide electrical power for earth-orbiting satellites. In the 1980s, photovoltaic became a popular power source for consumer electronic devices, including calculators, watches, radios, lanterns and other small battery-charging applications.

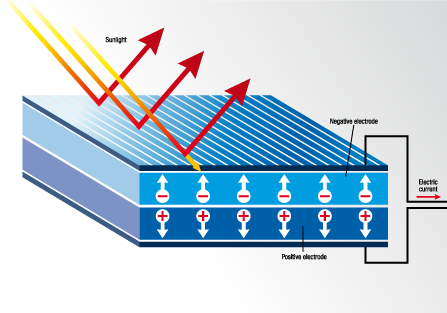

Photovoltaic Solar Panel Cross Section
Global Capacity

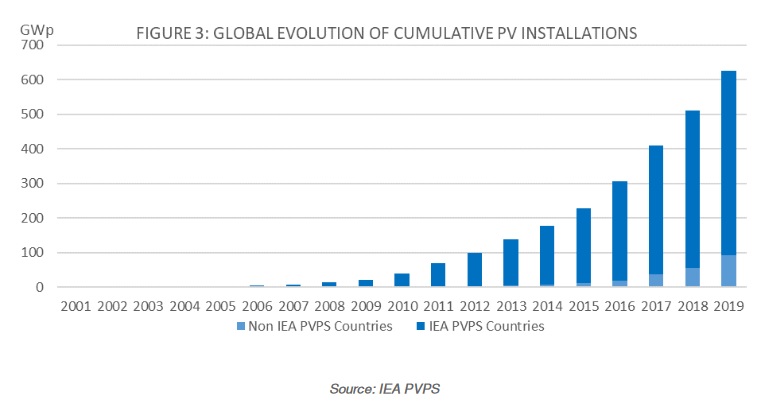

Snapshot of Global PV Markets 2020: International Energy Agency (IEA) [1]



In the early 2000s, Solar PV started being used as a way to generate electricity for the grid. In the decade between 2009 and 2019, global installed PV capacity increased over thirtyfold.



Despite its rapid growth, the International Energy Agency estimates that Solar PV still generates less than 2% of the world’s electricity.

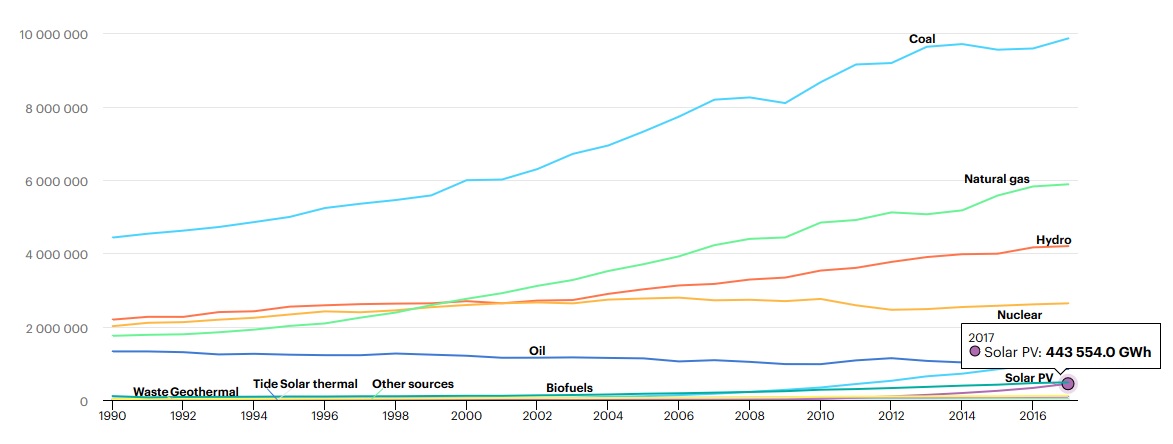

Electricity generation by source, World 1990-2017: International Energy Agency (IEA) [2]
Global Distribution

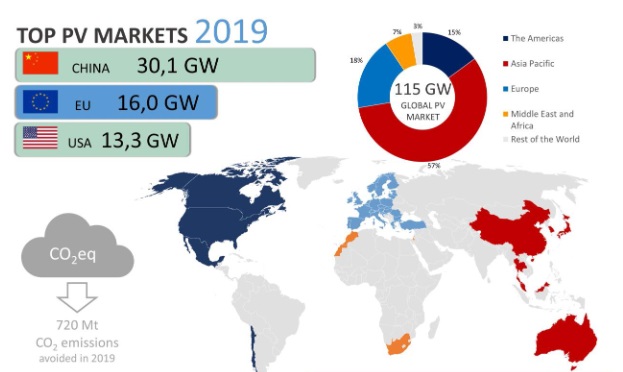

Snapshot of Global PV Markets 2020: International Energy Agency (IEA) [3]



Over half of all global PV power generation takes place in the Asia Pacific region. Within that region, China accounts for about 27% of all PV generation.
Projections
According to the International Renewable Energy Agency, based on current trends, cumulative solar PV capacity is expected to grow fourteen fold by 2050.

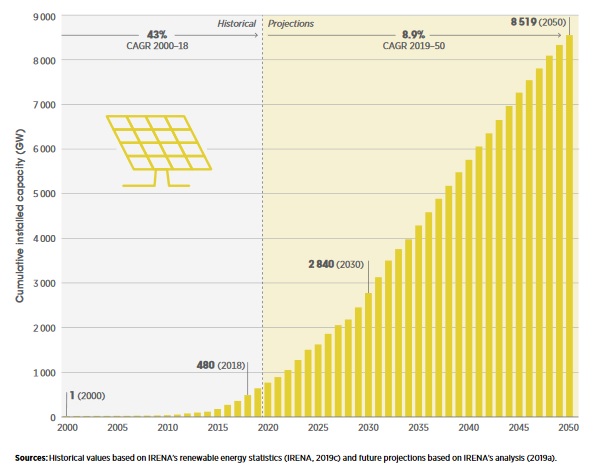

Future of Solar PV 2019: International Renewable Energy Agency (IRENA) [4]
Advantages
Snapshot of Global PV Markets 2020: International Energy Agency (IEA) [5]


Clean Energy
During electricity generation with PV panels, there is no harmful greenhouse gas emissions thus solar PV is environmentally friendly


Flexible Usage
Whereas most other clean energy options require large-scale constructions, PV panels can be used for both small-scale and large-scale power generation.

Residential solar panels are easy to install on rooftops or on the ground without any interference to residential lifestyle. In 2019, about 1/3 of all PV systems were small-scale rooftop installations.

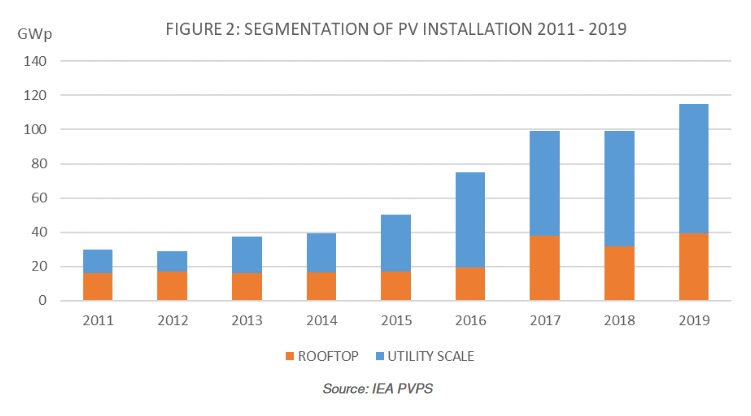

Future of Solar PV 2019: International Renewable Energy Agency (IRENA) [6]

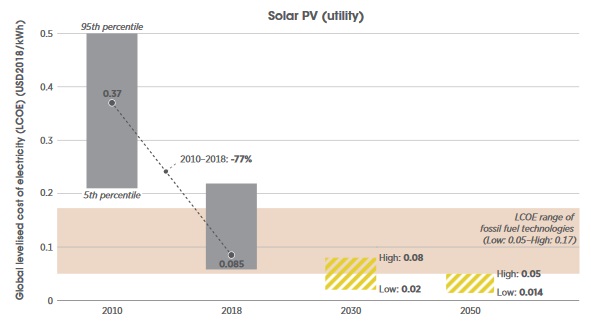

Cost Efficient
Because solar PV can be installed both industrially and residentially, power generation costs can vary widely depending on the scale of the project.

However, due to its popularity, average levelised costs of Solar PV have dropped by about 77% over the last 10 years. It is now one of the cheapest sources of energy.

In fact, by 2050, The International Renewable Energy Agency (IRENA) expects Solar PV to become consistently less expensive than the cheapest fossil fuel options.
Disadvantages
1. Toxic Chemicals
There are many toxic chemicals in PV solar panels, including cadmium telluride, copper indium selenide, cadmium gallium (di)selenide, copper indium gallium (di)selenide, hexafluoroethane, lead, and polyvinyl fluoride. During manufacturing and after the disposal of solar panels, hazardous chemicals are released into the environment [7]

Not only do PV panels require toxic materials, but with growing demands comes the increasing levels of toxic materials. According to a study by the Dutch Ministry of Infrastructure, by 2050 solar panels and wind turbines will require around 12 times as much indium as the entire world produces right now.

2. Intermittency Issues (Not a steady flow of sunlight)
Solar PV only works when there is direct sunlight. It is not a good solution for places that don’t get a lot of sunshine and it cannot be used to generate electricity at night. The unpredictability of solar energy makes PV panels a less reliable solution than some other clean energy technologies.

3. Lack of Storage
Because Solar PV panels generate electricity directly, they are not a good option for energy storage and transport. In order to store any excess solar energy, the PV technology must be paired with batteries. This can increase costs immensely.

Photovoltaic is good for small scale and instant use electricity, however for long term larger scale use energy production Concentrated Solar Power can solve the intermittency and energy storage issues

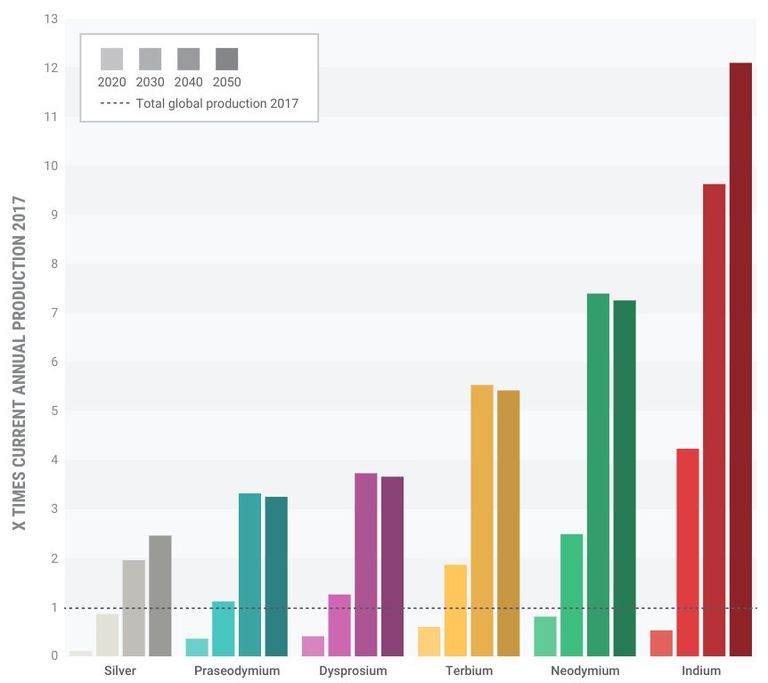

Metal demand for renewable electricity generation in the Netherlands: Dutch Ministry of Infrastructure [8]
Data Sources
1.International Energy Agency: Snapshot of Global PV Markets 2020 https://iea-pvps.org/wp-content/uploads/2020/04/IEA_PVPS_Snapshot_2020.pdf
2.International Energy Agency: Electricity generation by source, World 1990-2017 https://www.iea.org/data-and-statistics?country=WORLD&fuel=Energy%20supply&indicator=Electricity%20generation%20by%20source
3.International Energy Agency: Snapshot of Global PV Markets 2020 https://iea-pvps.org/wp-content/uploads/2020/04/IEA_PVPS_Snapshot_2020.pdf
4.International Renewable Energy Agency: Future of Solar PV 2019 https://www.irena.org/-/media/Files/IRENA/Agency/Publication/2019/Nov/IRENA_Future_of_Solar_PV_2019.pdf
5.International Energy Agency: Snapshot of Global PV Markets 2020 https://iea-pvps.org/wp-content/uploads/2020/04/IEA_PVPS_Snapshot_2020.pdf
6.International Renewable Energy Agency: Future of Solar PV 2019 https://www.irena.org/-/media/Files/IRENA/Agency/Publication/2019/Nov/IRENA_Future_of_Solar_PV_2019.pdf
7.Sciencing: Toxic Chemicals in Solar Panelshttps://sciencing.com/toxic-chemicals-solar-panels-18393.html
8.Dutch Ministry of Infrastructure: Metal demand for renewable electricity generation in the Netherlandshttps://www.metabolic.nl/publication/metal-demand-for-renewable-electricity-generation-in-the-netherlands/
